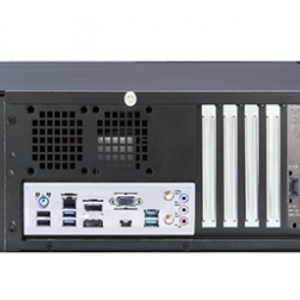

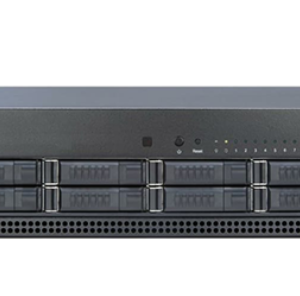

Hệ thống giám sát Geovision GV‐Hot Swap VMS System V5 RevE-3U-16Bay-8Bay

The GV-Hot Swap VMS System V5 features a powerful data storage capacity. It comes with a selection of 4U (20-bay) or 3U (16 / 8-bay) and hot-swappable SATA mobile racks. Depending on HDD size, the GV-Hot Swap VMS System V5 can store up to 200 terabytes of recorded data. Support for hot-swapping makes data storage and management more convenient.

GeoVision Surveillance System empowers the GV-Hot Swap VMS System V5 with a maximum of 64 audio and video channels. Its networking capability makes remote access and control of the system possible. Additionally, its compatibility with other GeoVision accessories can cater to any kind of needs or budgets. By extending the compatibility to the third-party IP devices (license required), GV-VMS software provides a pure IP solution to GV-Hot Swap VMS System V5.

Các tính năng chính:

Powered by Intel Core i7 Processor
64-bit Windows 10 IoT Enterprise
Support H.265 CPU and GPU decoding
Support up to 64 channels (pure IP surveillance)
Three-monitor display
Maximum storage capacity up to 200 TB (4U 20-Bay) / 160 TB (3U 16-Bay) / 80 TB (3U 8-Bay)
Hot-swap status LED panel
Dual Gigabit LAN ports
4U (20-bay) or 3U (16 / 8-bay) hot-swap SATA HDDs for data storage
Built-in 4 inputs and 4 outputs
Extreme performance for GV-VMS software operation
Pre-installed SSD for recovery
Supported RAID type:0,1,3,5,6,10,00,30,50,60,100 Single Disk or JBOD (optional)
Redundant power supply (optional)
Compatible with full selections of GeoVision accessories
CE, FCC, LVD compliant

Phụ kiện:

Số model	Tên gọi	Chi tiết
GV-Data Capture V3 Box			GV-Data Capture V3 Box can integrate the GV-Hot Swap DVR / NVR / VMS to an electronic POS system, while GV-Data Capture V3E Box can establish such integration through LAN or Internet.
GV-IO 12-In Card		With 12-point digital inputs, this card can expand the GV-Hot Swap VMS V5 up to 16 sensor inputs.
GV-IO 12-Out Card		With 12-point relay outputs, this card can expand the GV-Hot Swap VMS V5 up to 16 alarm outputs.
GV-COM V3		This unit can add 1 RS-485 port to your computer through a USB connector.
GV-IO Box Series		GV-IO Box series (4E / 4 Ports / 8 Ports / 16 Ports) provide 4 / 8 / 16 inputs and relay outputs and support both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE, TCP/IP and RS-485 connection.
GV-Joystick V2			GV-Joystick V2 facilitates the PTZ camera control. It can be either plugged into the GV-Hot Swap DVR/NVR V5 for independent use or connected to GV-Keyboard to empower the operation.
GV-Keyboard V3		The GV-Keyboard V3 is designed to program and operate GV-System and GV-VMS, and it can also be connected with PTZ cameras directly for PTZ control.
GV-IR Remote Control			The GV-IR Remote Control provides easy control of the GV-Hot Swap DVR / NVR / VMS System.
Gigabit Network Card		The Gigabit Network Card can support a single gigabit port. The number of gigabit ports supported varies based on models and combination of optional cards. Up to 3 gigabit ports can be supported.
RAID Card		The supported RAID types include 0,1,3,5,6,10,00,30,50,60,100 Single Disk or JBOD.
Redundant Power Supply		The Redundant Power Supply comes with 2 hot-swap modules for 3U models and for 4U models. When 1 module is down, the other module can still supply full power to the system. – 3U 8 Bays models: 460W 1+1 mode; 100~240V, 47~63HZ – 3U 16 Bays models: 550W 1+1 mode; 100~240V, 47~63HZ – 4U 20 Bays models: 800W 1+1 modes; 90~264V, 47~63HZ

Ghi chú:

Specifications are subject to change without notice.
